EXP™ Punch Technology

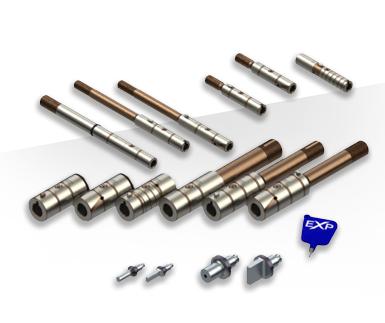

EXP™ punch technology from Wilson Tool is the first tooling in the industry to offer a standard holder with truly universal punches. This innovative product increases your productivity, reduces manufacturing waste, saves storage space while delivering the same performance, grind life and durability as Wilson Tool’s HP punch press tooling at a lower cost. Every EXP punch comes standard with Wilson Tool’s exclusive Ultima™ premium tool steel resulting in twice the tool life as most standard punches.



EXP™ punch technology is available for Metric and Wilson style HPX assemblies for thick turret tooling as well as Wilson Style HPX assemblies for thin turret tooling.

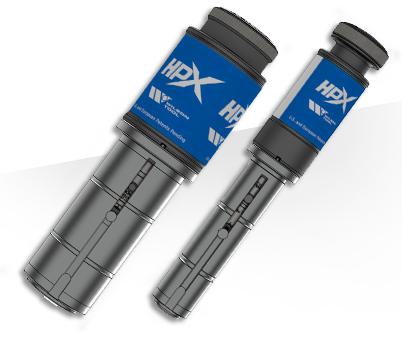

Wilson Style Small Station HPX Assembly and EXP Punch

The Wilson style small station HPX assembly and EXP punch is a revolutionary approach to punch press tooling. HPX delivers the most technologically advanced thick turret tooling on the market by incorporating Wilson’s EXP punch technology into an assembly with HP2 adjustment and the ability to accept round or shaped punches. In addition, every EXP punch comes standard with Wilson Tool’s exclusive Ultima™ premium tool steel resulting in twice the tool life as most standard punches.



Features:

·         EXP quick change technology

·         EXP punch made from Ultima® premium tool steel

·         Easy click length adjustment – no shims or tooling required

·         In machine adjustment for faster set ups

·         Maximum available grind life

·         Accepts round or shaped punches in the same assembly

·         ABS/WLS lubrication option is standard on all HPX assemblies

·         Hardened guides for increased durability

·         Simple tool-less stripper change

·         Relieved strippers for extended guide life

·         Optima® coated punches available

·         Slug Hugger® 2 – maximum slug retention

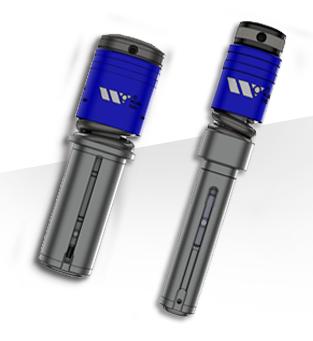

Wilson Style Small Station Basix Assembly and Full Body Punch

The Wilson style small station Basix assembly and full body punch is an affordable solution for fabricators looking to improve productivity and reduce tool replacement costs. Stronger tool steels, an intelligent design and optional surface enhancements combine to make Wilson Basix the standard in low cost, high quality thick turret tooling.



Features:

·         Hardened guides for increased durability

·         Simple tool-less stripper change

·         Relieved strippers for extended guide life

·         Wilson Style full body punches are built from premium hardened tool steel

·         Optima® coated punches available

·         Slug Hugger® 2 – maximum slug retention

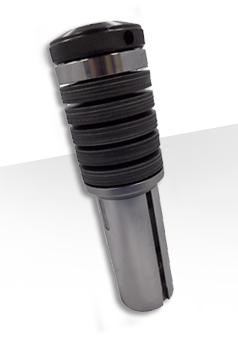

Wilson Style Small Station Basix Heavy Duty Assembly and Full Body Punch

The Wilson style small station Basix heavy duty assembly and full body punch is an affordable solution for fabricators looking to improve productivity and reduce tool replacement costs. Stronger tool steels, an intelligent design and optional surface enhancements combine to make Wilson Basix heavy duty the standard in low cost, high quality thick turret tooling.



Features:

·         Hardened guides for increased durability

·         Simple tool-less stripper change

·         Relieved strippers for extended guide life

·         Internal and external tool lubrication

·         OEM compatible

·         Optima® coated punches available

·         Slug Hugger® 2 – maximum slug retention

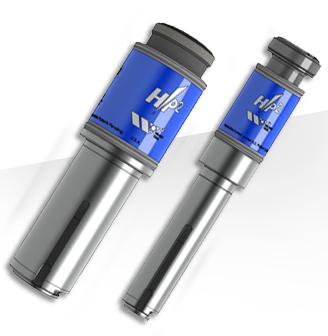

Wilson Style Small Station HP2 Assembly and HP Punch

The Wilson style small station HP2 assembly and HP punch offer the same features as Basix with the addition of increased grind life, tool less punch removal and the easiest punch length adjustment in the industry. The HP2 spring pack assembly delivers fast and easy tool-less punch length adjustments, in or out of the machine.



Features:

·         Easy click length adjustment – no shims or tooling required

·         In machine adjustment for faster set ups

·         HP punches made from premium hardened tool steel

·         Maximum available grind life

·         ABS/WLS machine lubrication capability

·         Hardened guides for increased durability

·         Simple tool-less stripper change

·         Relieved strippers for extended guide life

·         Optima® coated punches available

·         Slug Hugger® 2 – maximum slug retention

Wilson Style Small Station HP Heavy Duty Assembly and HP Heavy Duty Punch

The Wilson style HP heavy duty assembly gives you all the great features that HP offers, such as hardened tool steel and tool less punch and stripper change, with more punch stroke for punching through thicker materials.



Features:

·         HP punches made from premium hardened tool steel

·         Maximum available grind life

·         ABS/WLS  machine lubrication capability

·         Hardened guides for increased durability

·         Simple tool-less stripper change

·         Relieved strippers for extended guide life

·         Optima® coated punches available

·         Slug Hugger® 2 – maximum slug retention

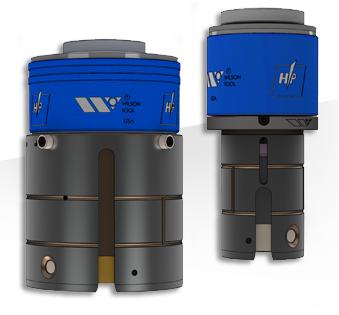

Wilson Style Large Station HP Assembly and HP Punch

Wilson’s HP large station assemblies and punches deliver the highest performance and value in the industry. HP large station products are precision manufactured with the highest quality materials.



Features:

·         Patented push button technology, which is side-mounted for easy access and quick in-machine adjustment

·         HP punches made from premium hardened tool steel

·         Optima® coated keys for superior wear resistance

·         Maximum available grind life

·         Up to 50% more bearing surface, reducing side loading

·         Made from hardened tool steel for increased durability

·         External keyways at 0°, 90° and 135°

·         Achieves angles of 0°, 90°, 135° 180°, 270° and 315°

·         Built-in oiling system (large station)

·         Push button lock release for quick stripper plate removal (large station)

·         In machine punch adjustment for faster set-ups

·         100% compatible with current Wilson HP guides and punches
