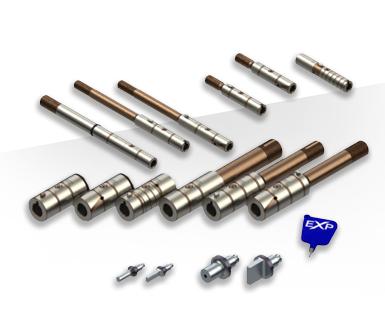

EXP™ punch technology

EXP™ punch technology from Wilson Tool is the first tooling in the industry to offer a standard holder with truly universal punches. This innovative product increases your productivity, reduces manufacturing waste, saves storage space while delivering the same performance, grind life and durability as Wilson Tool’s HP punch press tooling at a lower cost. Every EXP punch comes standard with Wilson Tool’s exclusive Ultima™ premium tool steel resulting in twice the tool life as most standard punches.

EXP™ punch technology is available for Metric and Wilson style HPX assemblies for thick turret tooling as well as Wilson Style HPX assemblies for thin turret tooling.

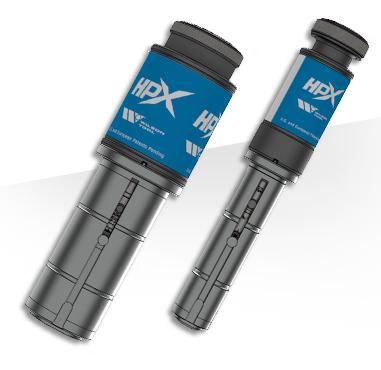

Metric Style Small Station HPX Assembly and EXP Punch

The Metric style small station HPX assembly and EXP punch is a revolutionary approach to punch press tooling. HPX delivers the most technologically advanced thick turret tooling on the market by incorporating Wilson’s EXP punch technology into an assembly with HP2 adjustment and the ability to accept round or shaped punches. In addition, every EXP punch comes standard with Wilson Tool’s exclusive Ultima™ premium tool steel resulting in twice the tool life as most standard punches.

Features:

• ·         EXP quick change technology
• ·         EXP punch made from Ultima® premium tool steel
• ·         Easy click length adjustment – no shims or tooling required
• ·         In machine adjustment for faster set ups
• ·         Maximum available grind life
• ·         Accepts round or shaped punches in the same assembly
• ·         ABS/WLS lubrication option is standard on all HPX assemblies
• ·         Hardened guides for increased durability
• ·         Simple tool-less stripper change
• ·         Relieved strippers for extended guide life
• ·         OEM compatible
• ·         Optima® coated punches available
• ·         Slug Hugger® 2 – maximum slug retention

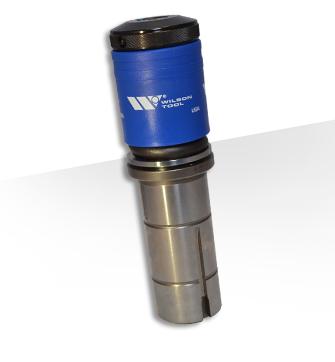

Metric Style Small Station Basix Assembly and Full Body Punch

The Metric style small station Basix assembly and full body punch is an affordable solution for fabricators looking to improve productivity and reduce tool replacement costs. Stronger tool steels, an intelligent design and optional surface enhancements combine to make Basix the standard in low cost, high quality thick turret tooling.

Features:

• ·         Hardened guides for increased durability
• ·         Simple tool-less stripper change
• ·         Relieved strippers for extended guide life
• ·         Internal and external tool lubrication
• ·         Machine lubrication capability {ABS/WLS only, all HPX}
• ·         OEM compatible
• ·         Basix full body punches made from premium hardened tool steel
• ·         Optima® coated punches available
• ·         Slug Hugger® 2 – maximum slug retention

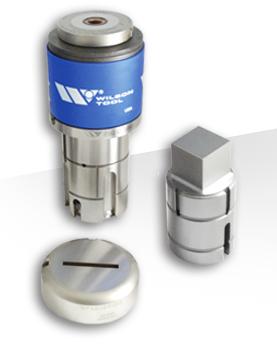

Metric Style Large Station Assembly and Metric Punch

Metric large station assemblies and metric punches deliver the highest performance and value in the industry. Wilson Tool’s metric large station products are OEM compatible and precision manufactured wit the highest quality materials.

Features:

·         Patented push button technology, which is side-mounted for easy access and quick in-machine adjustment

·         Metric punches made from premium hardened tool steel

·         Optima® coated keys for superior wear resistance

·         Maximum available grind life

·         Up to 50% more bearing surface, reducing side loading

·         Made from hardened tool steel for increased durability

·         External keyways at 0°, 90° and 135°

·         Achieves angles of 0°, 90°, 135° 180°, 270° and 315°

·         In machine punch adjustment for faster set-ups

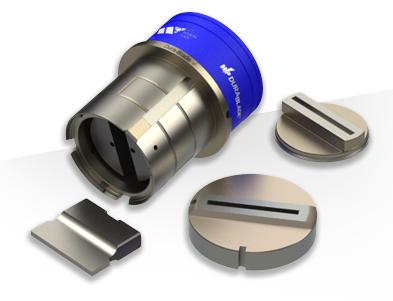

Wilson Tool’s HP Dura-Blade™

Wilson Tool’s HP Dura-Blade™ is designed specifically for parting applications to help maximize your productivity. Dura-Blade features a push button adjustment system and quick release stripper plate for fast and easy tool changes. Dura-Blade has all the performance-driven features of the HP-style tooling plus a replaceable cutting blade insert made with Ultima premium tool steel to significantly increase grind life.

The Dura-Die parting tool completes Wilson Tool’s ultimate parting solution. When combined with our Dura-Blade product, you are able to greatly increase the life of your parting tools. When a new die is necessary, just replace the removable insert and you are quickly back up and running.

Both products are available for standard parting in C, D, and E stations. Available with one- and two-sided relieved strippers for use in close-to-clamp applications for D and E stations. ABS/WLS features are available.

Old Style replaceable inserts available upon request.

·

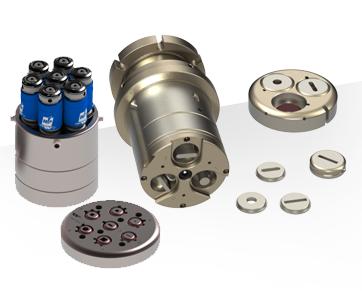

Indexable Multi Tools

Multi-Tools enable you to load the equivalent of 3, 8 or even 20 smaller tools in a single station. This increases your turret capacity and reduces your set-up times and tooling costs.

The Wilson Tool MT7A consolidates up to seven punches into a single tool, reducing the hassle of multiple set ups. The drop-in style allows punches to be loaded or unloaded quickly and easily.

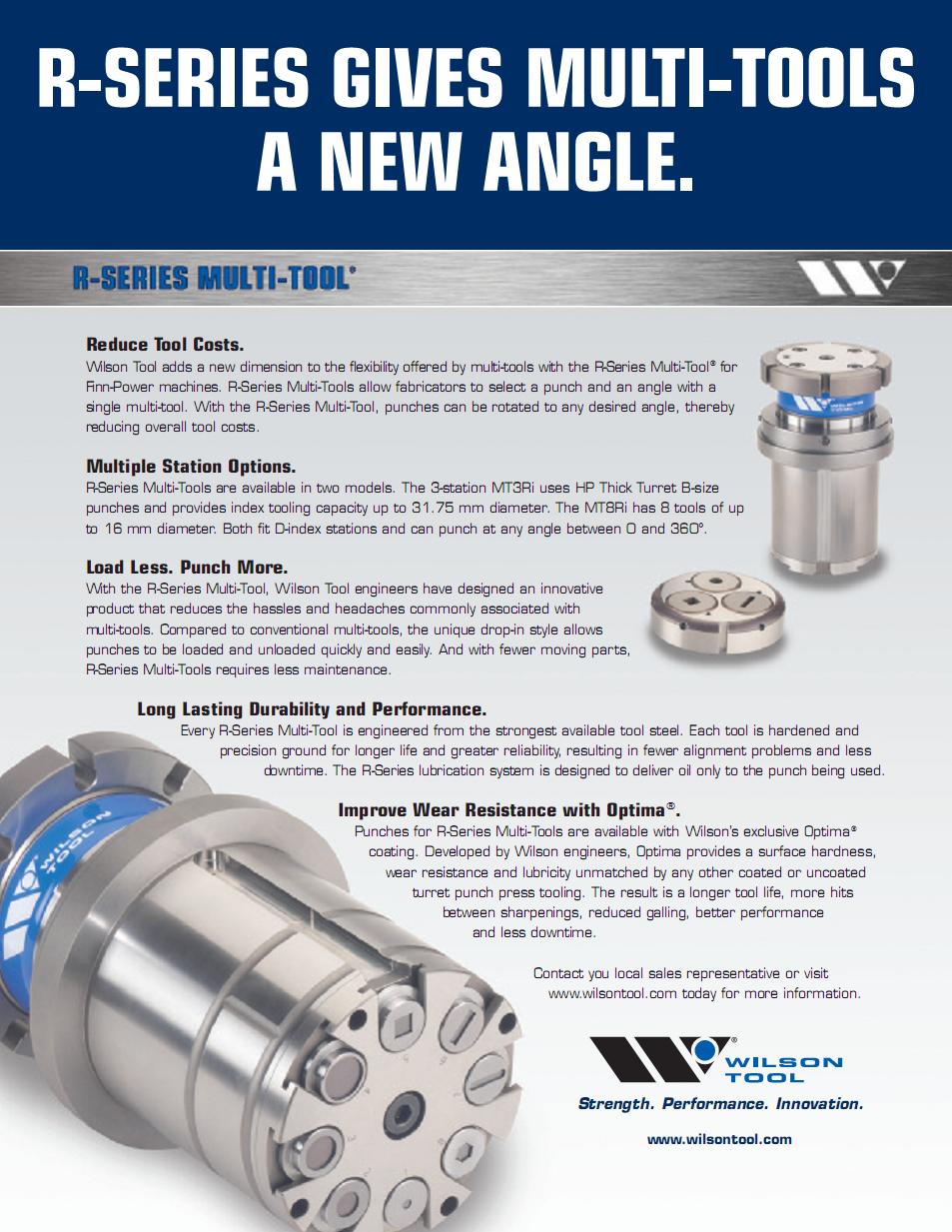

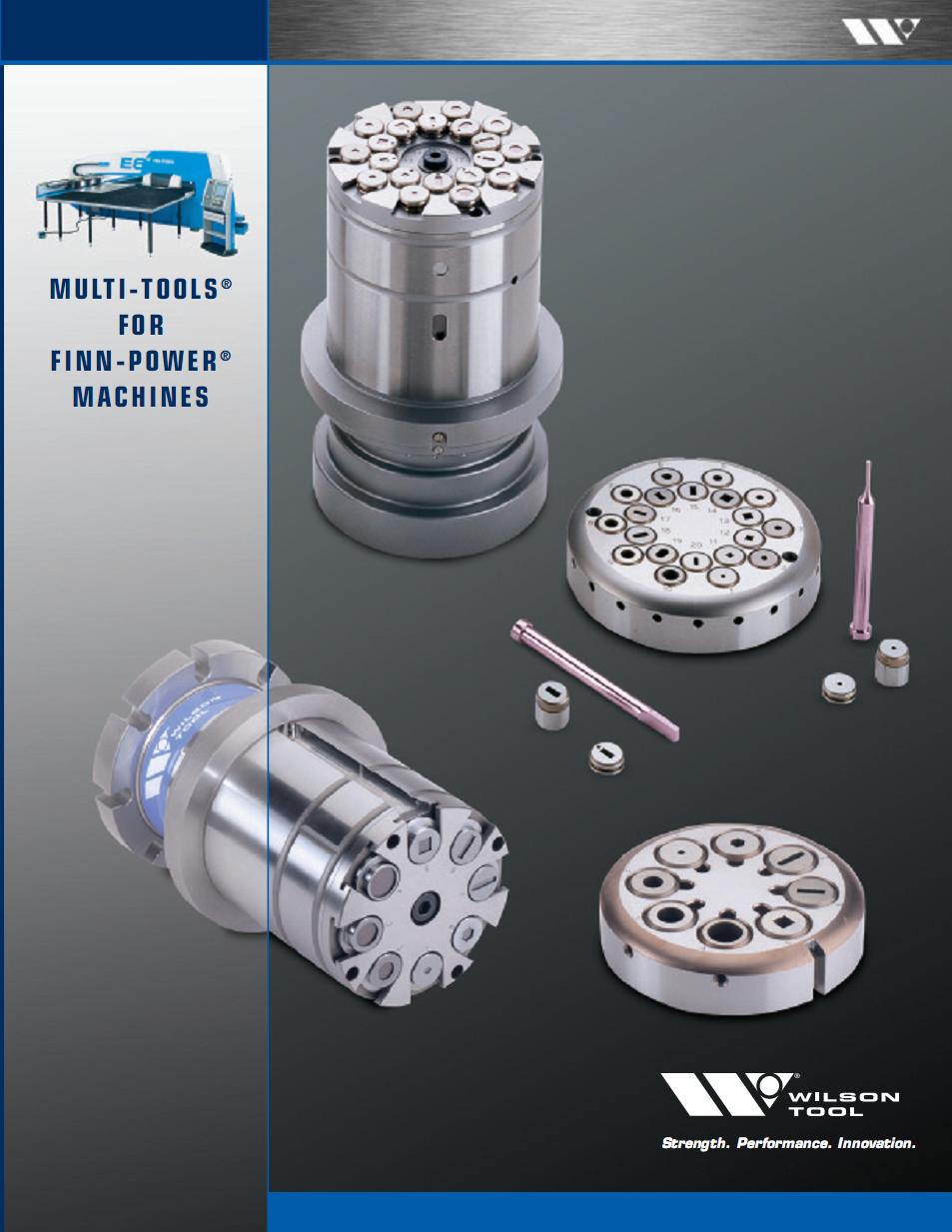

With the R-Series Multi-Tool for Finn-Power machines, you can select a punch and an angle with a single multi-tool. Punches can be rotated to any desired angle, which reduces your overall tool costs. Unlike conventional multi-tools, the R-Series’ drop-in style allows punches to be loaded and unloaded quickly and easily.
